Product Detail
Lamps and lantern Powder Coatings
This product is synthesized by epoxy and polyester resin, with special properties of the two materials, with advantages of excellent decorative effect, mechanical properties and high corrosion resistance. It is widely used in metal lanterns decoration as following:

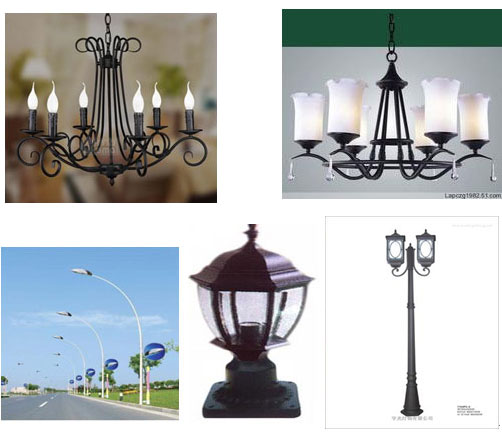

•lantern decoration: ceiling lamp, table lamp, fluorescent light, energy-saving lamp, flood light, explosion proof light, signal lamp, indoor light, outdoor light, wall light, ground light, pendant light, down light, spot light, yard lamp, road light;
•we offer powder coatings with different colors, gloss and textures.
Lamp and lantern powder coatings |
Physical properties | Gravity | 1.4-1.7，up to color and gloss |
| Grit size | 100% smaller than 100μm, special requirement should be informed |
| Mobility | 120-140 |
|
Properties of Coating layer | Item | criteria | result |
| Gloss 60° |
| GB/T9754-88 | 1° to 95°+ |
| Impact test | ISO6272 | GB/T1723-1993 | 50cm/kg |
| Cupping test | ISO1520 | GB/T9753-1988 | 8mm |
| Adhesion | ISO2409 | GB/T 9286-1998 | Grade 0 |
| Bending test | ISO1519 | GB/T 6742-1986 | 2mm |
| Pencil hardness | ASTMD3363 | GB/T 6739-1996 | 1H-2H |
| Salt-fog test | ISO7253 | GB/T 1771-1991 | ＞500h |
| Anti-humidity | ISO6270 | GB/T 1740-1979 | ＞1000h |
| Heat resistance | 110℃/24h(white) | Excellent gloss retention, △E≤0.3-0.5 |
| Attention:1. Above parameters are gained from oil-free, rust removal cold rolling steel board of thickness of 0.8mm, under experimental circumstances, with coating layer thickness of 70μm; 2. The property data may drop down a little upon gloss reduction. |
|
Application conditions: | Consolidation conditions | Standard | 180℃(work piece temperature) 15-20min |
|
Pre-treating | Low temperature 160℃(work piece temperature) 15min Fast 200℃(work piece temperature) 8min
Pre-treating methods differs from different substrates( phosphating process, sand blasting, shot treatment) |
| Spraying |
Corona electrostatic spraying ; frictional electrostatic spraying ; for other special spraying method (user must propose requirement ahead) |
| Theoretical coverage | 8-10m2/kg, coating layer thickness 60um, up to types and colors |
| Application confine | Indoor and outdoor |
|
other | Packaging and transportation | 20Kg/Carton, with polyethylene bag, Non-dangerous articles, transportation friendly. Avoiding straight sunlight, humidity, heat, and contact with chemical substances; |
| Storing | Stored indoors at 40℃, ventilated, dry, clean warehouse, avoiding fire source, heat radiators, straight sunlight, opening to the air. Warranty period: 6 months. To be used after checking if expired. Unfinished bags should be sealed after opening. |
| Hygiene and security | Bags should be sealed after working. Keep away from fire source. Avoiding intake of powder. Catering and smoking are forbidden in relevant warehouse. Labor should wear anti-static shoes, keep grounding. |
Attentions: We do not recommend use of bright color series such as yellow, orange, red, or metallic color series. For details, please contact Guangzhou Yinda Powder Coatings Co., Ltd. In order to protect metal parts, pre-treating must be done in good quality before coating. For details, please contact supplier of pre-treating chemicals.
