Machine cabinet and canopy
Original: 0.00
Detail

Product Detail


Machine cabinet and canopy Powder Coatings

This product is synthesized mainly by epoxy and polyester resin, with special properties of the two materials, and with advantages of excellent decorative effect, mechanical properties and high corrosion resistance. It is widely used in different kinds of machine cabinets, boxes, cases and canopies.

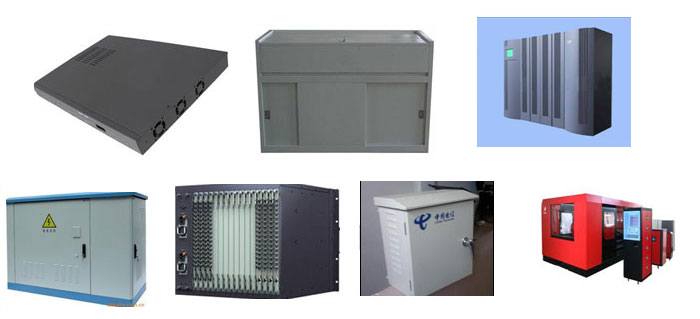

Confine of application:

• Industrial controlling boxes, powder distribution boxes;

• Telecommunication machine boxes;

• Computer cases;

• Cases of UPS power supply;

• Safe cabinets, file cabinets;


Surface texture:

• We offer different kinds of color, gloss and surface textures.


Machine cabinet and canopy powder coatings

Physical

properties

Gravity

1.4-1.7,up to color and gloss


Grit size

100% smaller than 100μm, special requirement should be informed


Mobility

120-140


Properties of

Coating layer

Item

Criteria

Result


Gloss 60°


GB/T9754-88

1° to 95°+


Impact test

ISO6272

GB/T1723-1993

50cm/kg


Cupping test

ISO1520

GB/T9753-1988

8mm


Adhesion

ISO2409

GB/T 9286-1998

Grade 0


Bending test

ISO1519

GB/T 6742-1986

2mm


Pencil hardness

ASTMD3363

GB/T 6739-1996

1H-2H


Salt-fog test

ISO7253

GB/T 1771-1991

>500h


Anti-humidity

ISO6270

GB/T 1740-1979

>1000h


Heat resistance

110/24h(white)

Excellent gloss retention, E≤0.3-0.5


Attention:

1. Above parameters are gained from oil-free, rust removal cold rolling steel board of thickness of 0.8

mm, under experimental circumstances, with coating layer thickness of 70μm;

2. The property data may drop down a little upon gloss reduction.


Application

conditions:

Consolidation

conditions

Standard

180(work piece temperature) 15-20min




Pre-treating

Low temperature  160(work piece temperature) 15min

Fast              200(work piece temperature) 3min


Pre-treating methods differs from different substrates( phosphating process,

sand blasting, shot treatment)


Spraying

Corona electrostatic spraying ;for other spraying method (user must propose

requirement ahead)


Theoretical

coverage

8-10m2/kg, coating layer thickness 60um, up to types and colors


Application confine

Indoor


other

Packaging and

transportation

20Kg/Carton, with polyethylene bag, Non-dangerous articles, transportation friendly. Avoiding straight sunlight, humidity, heat, and contact with chemical substances;


Storing

Stored indoors at 40℃, ventilated, dry, clean warehouse, avoiding fire source,

heat radiators, straight sunlight, opening to the air. Warranty period: 6 months.

To be used after checking if expired. Unfinished bags should be sealed after

opening.


Hygiene and

security

Container or bags should be sealed after working. Keep away from fire source. Avoiding intake of powder. Catering and smoking are forbidden in relevant w

arehouse. Labor should wear anti-static shoes, keep grounding.

Attentions: We do not recommend use of bright color series such as yellow, orange, red, or metallic color series. For details, please contact Guangzhou Yinda Powder Coatings Co., Ltd. In order to protect metal parts, pre-treating must be done in good quality before coating. For details, please contact supplier of pre-treating chemicals.
