Automobile accessory Powder Coatings

With the development and promotion of powder coatings, nowadays, they are widely used in automobile industry, and popular because of the properties of beauty, mobility sense, environment protection. Automobile industry becomes one of the biggest users of powder coatings.

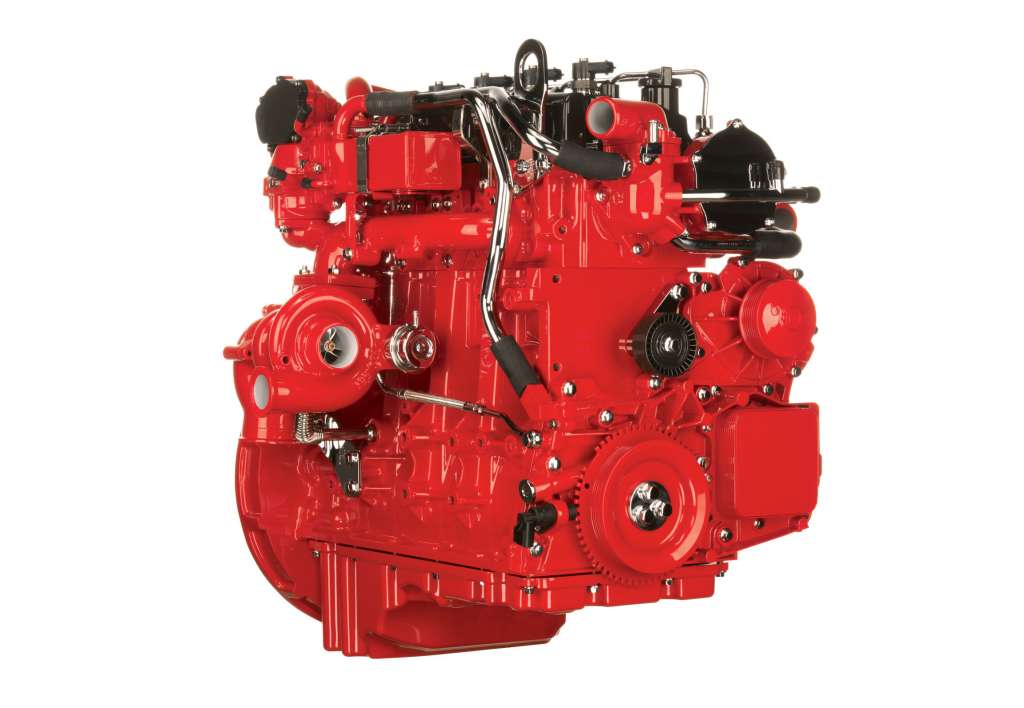

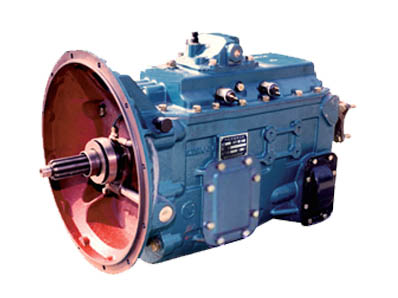

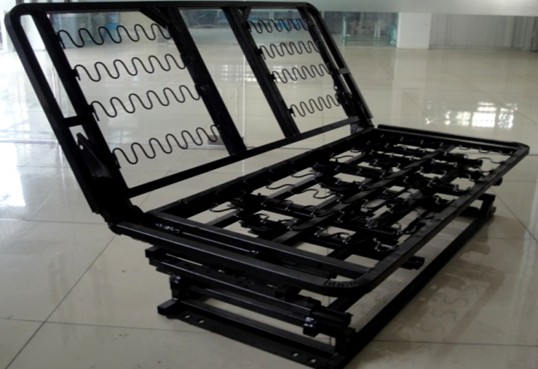

Our powder coatings are made of polyesters, polyester/epoxy types, especial for accessories of automobiles and motorcycles, including engines, chairs, oil tanks, filters, rain scrapers, horns, reflectors, wheel hubs, gear boxes, etc.

We are researching and developing powder coatings especial for automobile industry, to meet the requirements of super properties, such as, anti weathering, corrosion resistance, wear resistance, heat resistance, gloss and color retention, etc.





Automobile industry powder coatings

Physical properties

Gravity

1.4-1.7,up to color and gloss


Grit size

100% smaller than 100μm, special requirement should be informed


Mobility

120-140


Properties of Coating layer

Item

criteria

result


Gloss 60°


GB/T9754-88

1° to 95°+


Impact test

ISO6272

GB/T1723-1993

50cm/kg


Cupping test

ISO1520

GB/T9753-1988

8mm


Adhesion

ISO2409

GB/T 9286-1998

Grade 0


Bending test

ISO1519

GB/T 6742-1986

2mm


Pencil hardness

ASTMD3363

GB/T 6739-1996

1H-2H


Salt-fog test

ISO7253

GB/T 1771-1991

>500h


Anti-humidity

ISO6270

GB/T 1740-1979

>1000h


Heat resistance

110/24h(white)

Excellent gloss retention, E≤0.3-0.5


Attention:

1. Above parameters are gained from oil-free, rust removal cold rolling steel board of thickness of

0.8mm, under experimental circumstances, with coating layer thickness of 70μm;

2. The property data may drop down a little upon gloss reduction.


Application conditions:

Consolidation conditions

Standard

180(work piece temperature) 15-20min





Pre-treating

Low temperature  160(work piece temperature) 15min

Fast              200(work piece temperature) 3min


Pre-treating methods differs from different substrates( phosphating process,

sand blasting, shot treatment)


Spraying

Corona electrostatic spraying ; frictional electrostatic spraying ; for other

spraying method (user must propose requirement ahead)


Theoretical

coverage

8-10m2/kg, coating layer thickness 60um, up to types and

colors


Application confine

Indoor


other

Packaging and transportation

20Kg/Carton, with polyethylene bag, Non-dangerous articles, transportation friendly. Avoiding straight sunlight, humidity, heat, and contact with chemical

substances;


Storing

Stored indoors at 40℃, ventilated, dry, clean warehouse, avoiding fire source,

heat radiators, straight sunlight, opening to the air. Warranty period: 6 months.

To be used after checking if expired. Unfinished bags should be sealed after

opening.


Hygiene and

security

Container or bags should be sealed after working. Keep away from fire source. Avoiding intake of powder. Catering and smoking are forbidden in relevant warehouse. Labor should wear anti-static shoes, keep grounding.

Attentions: We do not recommend use of bright color series such as yellow, orange, red, or metallic color series. For details, please contact Guangzhou Yinda Powder Coatings Co., Ltd. In order to protect metal parts, pre-treating must be done in good quality before coating. For details, please contact supplier of pre-treating chemicals.
