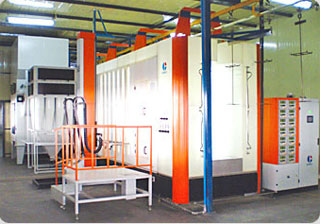

Small whirlwind second-stage             recycle spray booth
Share to:
Small whirlwind second-stage             recycle spray booth
Original: 0.00
Detail

Multi-tube whirlwind second-stage recycle spray booth is widely used quickly due to high recycle rate and fitness for multicolor production, and featured by compact structure, small floor area and low requirement especially on factory height and space and high recycle separation rate.


Bottom Scraper Device of Spray Booth

Impulse Airflow Cleaning Device on the Bottom of Spray Booth


Spray Booth Made of Plastic Spray Plates

Schematic Diagram of Scraper Recovery Spray Booth

Schematic Diagram of Bottom Impulse Air Recycle Spray Booth


●Advantages of multi-tube two-stage recycle spray booth:

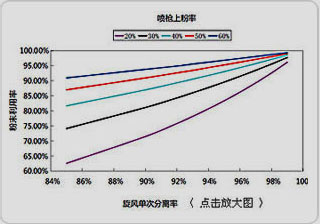

1. Over 98% of single powder separation rate, saving powder;
2. The bottom can be equipped with impulse airflow cleaning device or turnover plate device to ensure timely recycle of over-spray powders;
3. Adopt high-quality and long-life nanometer laminating filter core. The service lifespan of filter core can last for years;
4. Nanometer laminating filter element can catch dust above 0.1 μm, without any waste of powders;
5. The filtered air becomes clean after filtering and can be cycled inside the factory;
6. Fully independent powder filtering and powder supply system.




The cyclone system has the problem that secondary recycled  powders cannot be reused, in order to save powders, our company developed and promoted early whirlwind two-stage recycle spray booth made of engineering plastic. The spray booth can improve primary powder adsorption rate of workpieces to save powders, and accelerate color changing speed meanwhile.


Rapid Color Changing and Powder Supply Center

Open Outer Hand Spray Platform(with stairs)

One-layer Engineering Plastic Whirlwind Spray Booth


◆Advantages of Engineering Plastic Whirlwind Spray Booth:

1. The spray booth can adopt full sandwich structure, and can allocate rapid color changing powder supply center;
2. The spray booth can adopt open hand spray platform design, especially suitable for complicated and large workpieces;
3. Over 98% of single powder separation rate, saving powder;
4. The bottom can be equipped with impulse airflow cleaning device or turnover plate device to ensure timely recycle of over-spray powder;
5. Adopt high-quality and long lifespan nanometer laminating filter core and cleaning device for filter core with patented technology. The service life of filter core can last for years;
6. Nanometer laminating filter element can catch dust above 0.1 μm, without any waste of powders, and the filtered air becomes clean and can be cycled inside the factory;
7. Fully independent powder filtering and powder supply system.
